Flat Membrane Switch
Membrane switch with a fully flat graphic overlay. Easy to clean, sealed and slim, ideal for industrial and medical equipment.
Made in our own facility in Istanbul
Construction and how it works
The flat membrane switch is the simplest and most robust membrane construction. The graphic overlay is completely flat and key areas are defined by printing alone. With no embossing or gaps to trap dirt, the surface wipes clean in a single pass.
Graphics are printed on the reverse side of the polyester or polycarbonate film, so they cannot wear off in use. The slim stack sits almost flush with the device housing.
Key features
Hygienic surface
A surface without embossing is easy to disinfect.
Sealed construction
A one-piece overlay keeps dust and liquids out.
Wear-proof graphics
Second-surface printing protects graphics under the film.
Slim profile
A few thin layers that fit the most compact designs.
Specifications
Values are typical. Final specifications are defined together based on your drawing and application.
Typical applications
- Medical devices
- Laboratory equipment
- Food processing machines
- Measurement and test instruments
- Overlay material
- Polyester (PET) or polycarbonate (PC)
- Printing
- Second-surface screen printing, Pantone matched
- Circuit
- Silver conductive ink on flexible PET
- Tactile element
- Non-tactile or polyester dome
- Actuation life
- Up to 1 million actuations (typical)
- Connection
- Flex tail with female/male pins or ZIF-ready end
- Sealing
- Front-surface sealing up to IP65
- Mounting
- 3M acrylic rear adhesive
Related products
All products

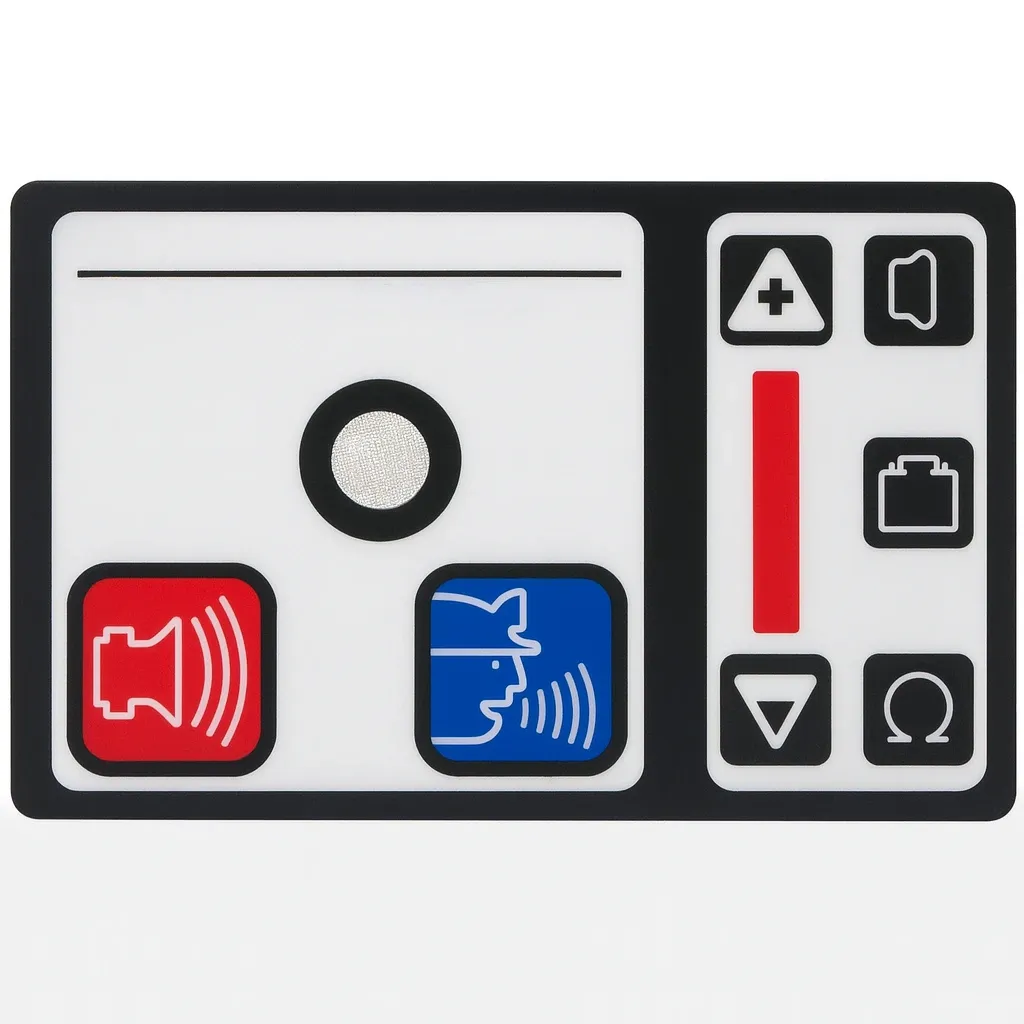

Plateau-Embossed Membrane Switch
Membrane switch with key areas raised as flat plateaus. Keys can be located by touch, even with gloves or without looking.

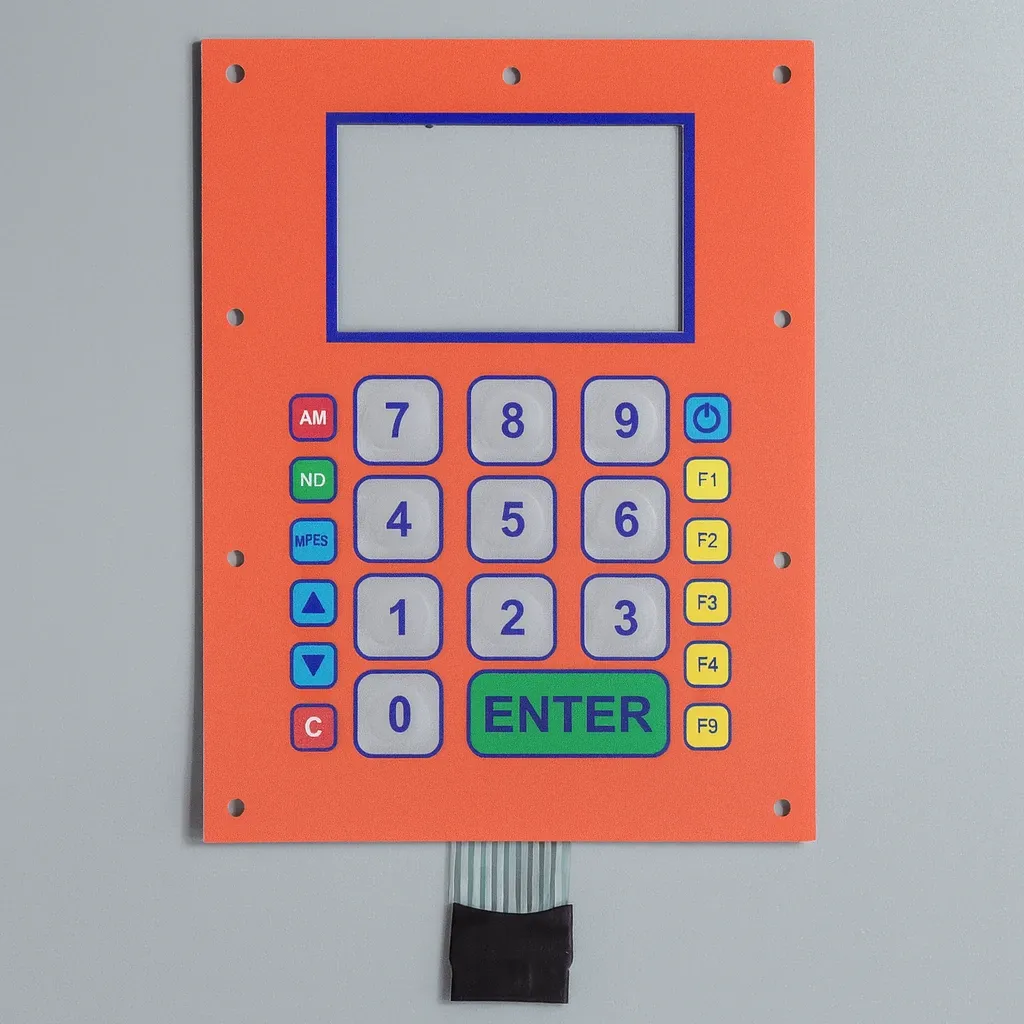

Pillow-Embossed Membrane Switch
Membrane switch with keys raised in a soft, rounded pillow shape. Ergonomic feel and clearly defined keys.

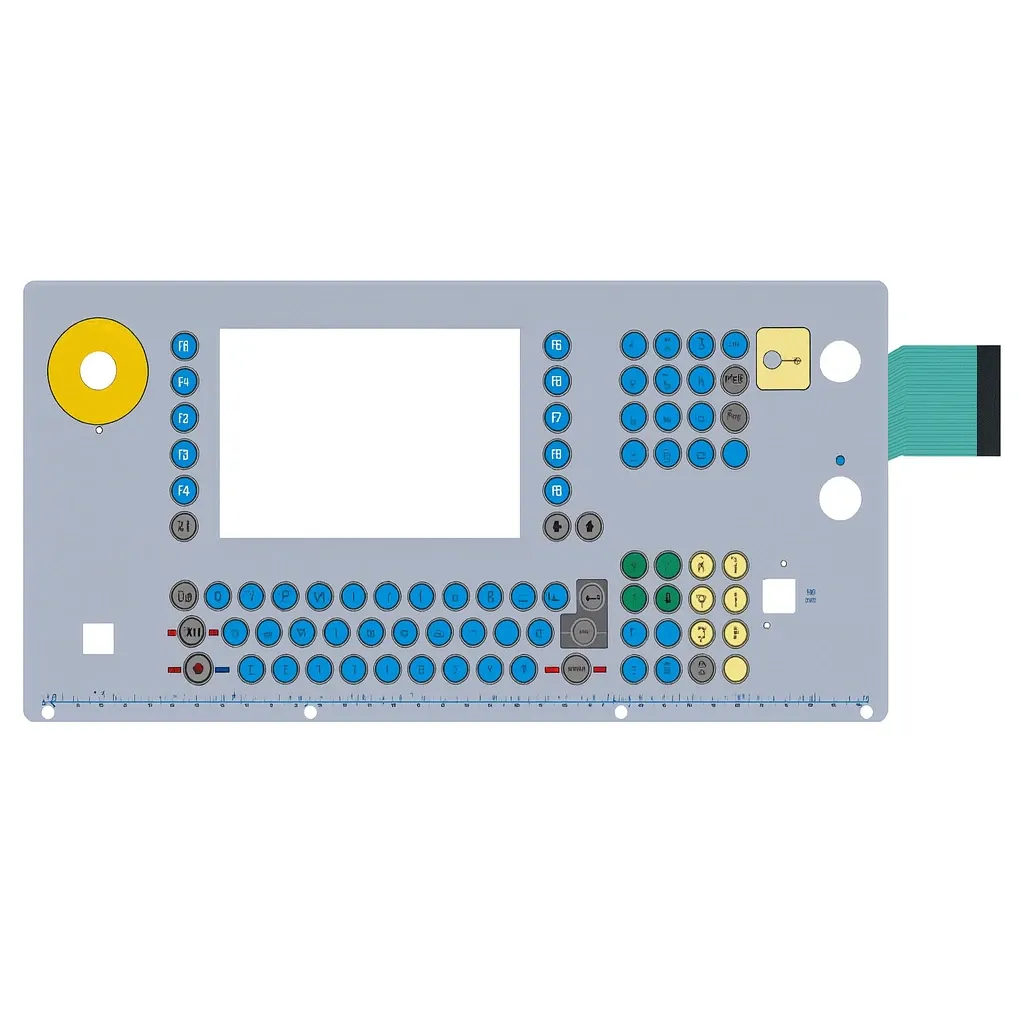

Rim-Embossed Membrane Switch
Membrane switch with only the key outline embossed. The key surface stays flat while its border can be felt by touch.

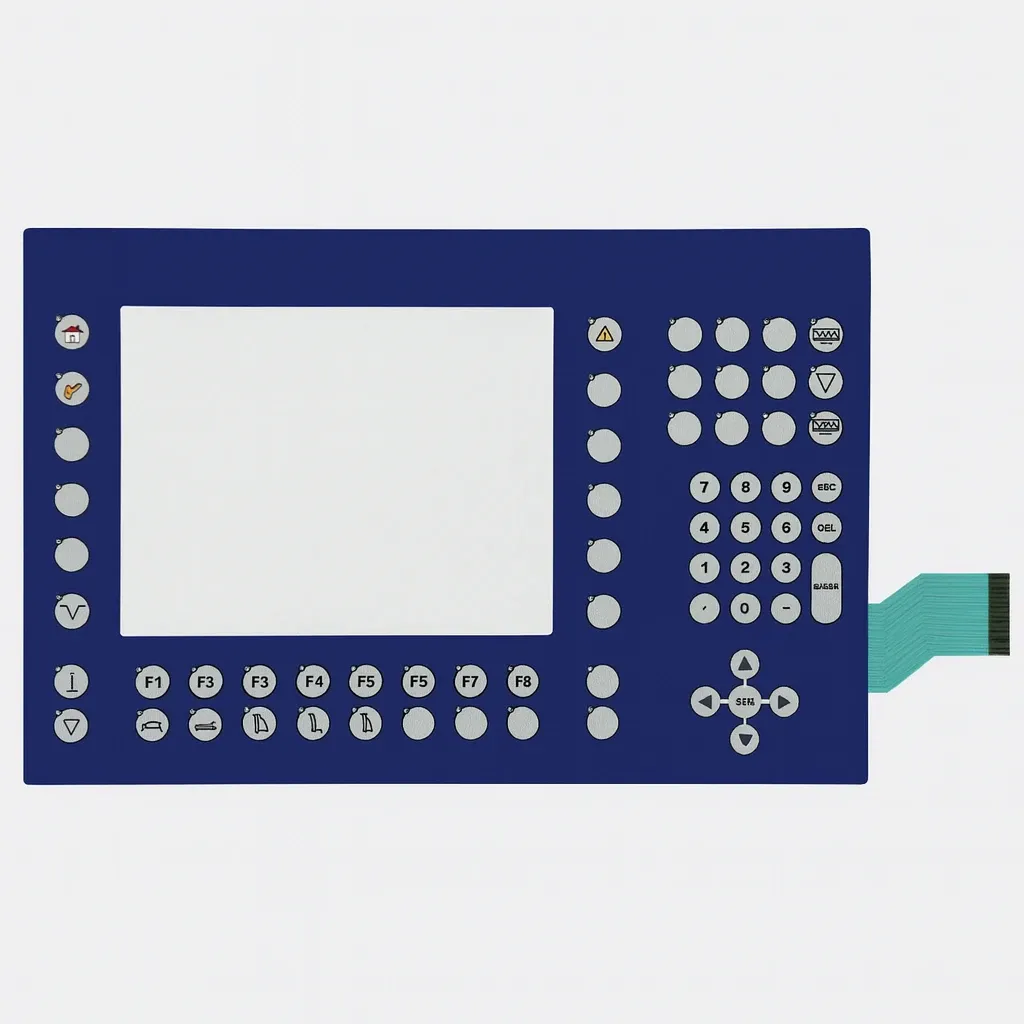

Metal Dome Membrane Switch
