Flexible Membrane Circuit (No Overlay)
Flexible membrane switch circuit with upper, spacer and lower layers but no graphic overlay. A ready switch for under your own front panel.
Made in our own facility in Istanbul
Construction and how it works

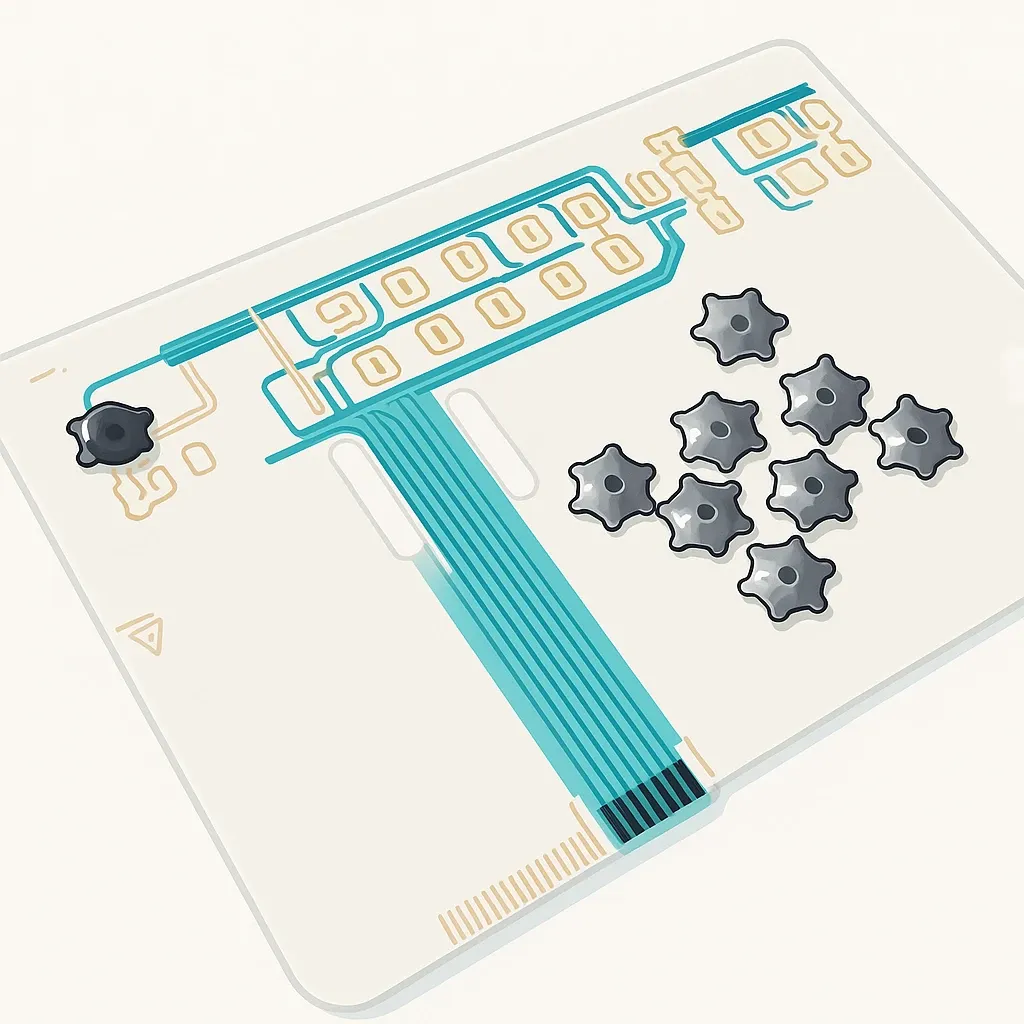

A coverless flexible circuit contains all the electrical layers of a membrane switch: upper circuit, spacer and lower circuit. The graphic front can be your own panel, housing or a separately sourced label.
Key matrix, dome placement and tail exit are designed to your drawing. You receive a tested, working switch layer.
Key features
Ready switch layer
Electrically complete and fully tested.
Design freedom
Finish the front with your own material and print.
Dome options
Available with metal or polyester domes.
Matrix design
Key matrix is drawn to suit your controller.
Specifications
Values are typical. Final specifications are defined together based on your drawing and application.
Typical applications
- Devices with metal or glass front panels
- OEM sub-assemblies
- Instrument panels
- Custom enclosure designs
- Circuit
- Upper and lower PET circuits with spacer
- Tactile element
- Metal or polyester dome, or non-tactile
- Actuation life
- Up to 5 million actuations (dome dependent)
- Connection
- Flex tail with female/male pins or ZIF-ready end
- Mounting
- 3M acrylic rear adhesive
