Metal Dome Membrane Switch
Membrane switch with stainless steel domes under a flat overlay. Crisp snap, long actuation life and reliable contact.
Made in our own facility in Istanbul
Construction and how it works
A metal dome is a dome-shaped stainless steel spring placed over the circuit. When the key is pressed, the dome collapses at a defined force, gives a crisp snap and closes the circuit.
Combined with a flat overlay, it delivers an easy-to-clean surface with tactile feedback close to a mechanical key. Dome diameter and force are selected per application.
Key features
Distinct snap
Users feel every successful actuation.
Long life
Metal domes keep their character over millions of presses.
Selectable force
Domes in various diameters and actuation forces.
Low contact resistance
Domes provide reliable, stable contact on the circuit.
Specifications
Values are typical. Final specifications are defined together based on your drawing and application.
Typical applications
- Industrial automation
- Defence and aerospace equipment
- Medical devices
- Handheld terminals
- Overlay material
- Polyester (PET) or polycarbonate (PC)
- Printing
- Second-surface screen printing, Pantone matched
- Tactile element
- Stainless steel dome, various diameters and forces
- Actuation life
- Up to 5 million actuations (dome dependent)
- Circuit
- Silver conductive ink on flexible PET
- Connection
- Flex tail with female/male pins or ZIF-ready end
- Sealing
- Front-surface sealing up to IP65
- Mounting
- 3M acrylic rear adhesive
Related products
All products

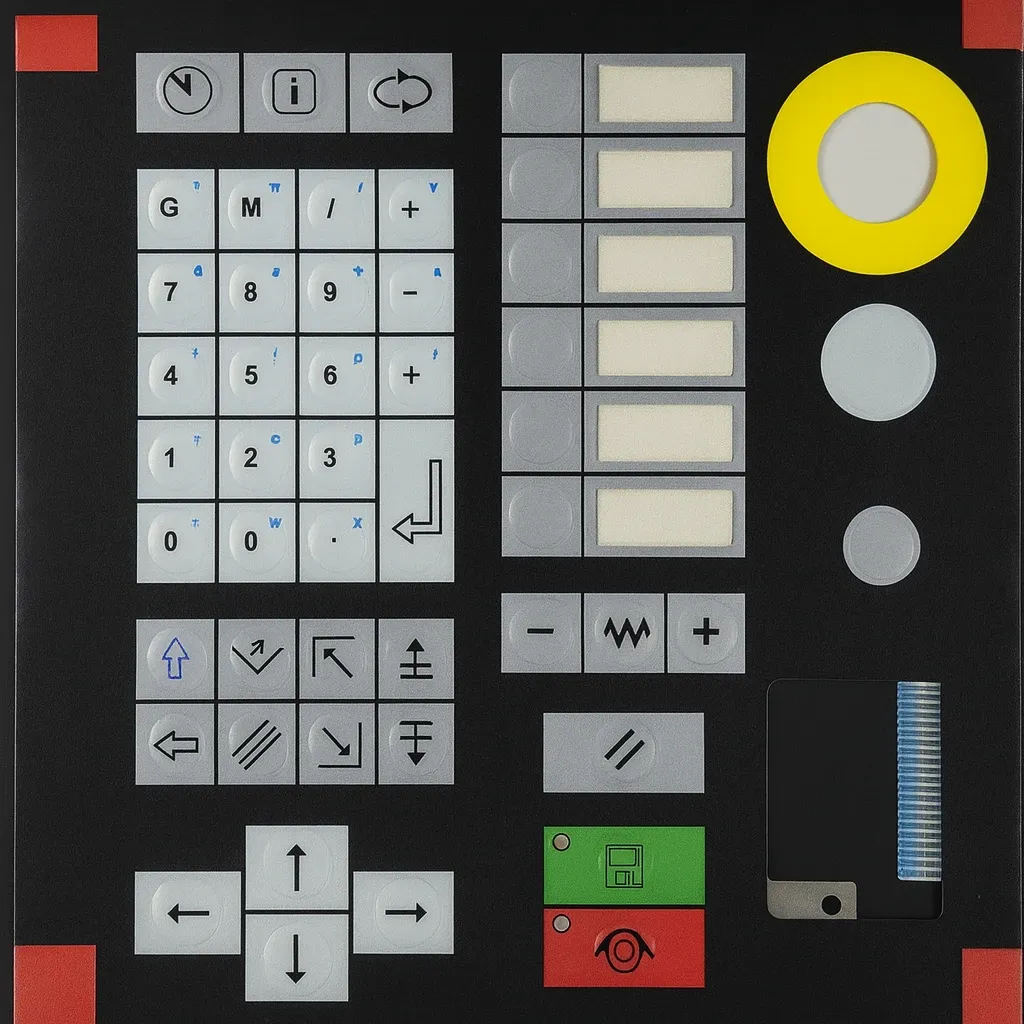

Embossed Metal Dome Membrane Switch
