Flat Membrane Switch with SMD LEDs
Flat membrane switch with SMD chip LEDs built into the circuit. Key status, alarm and power indicators right on the panel.
Made in our own facility in Istanbul
Construction and how it works

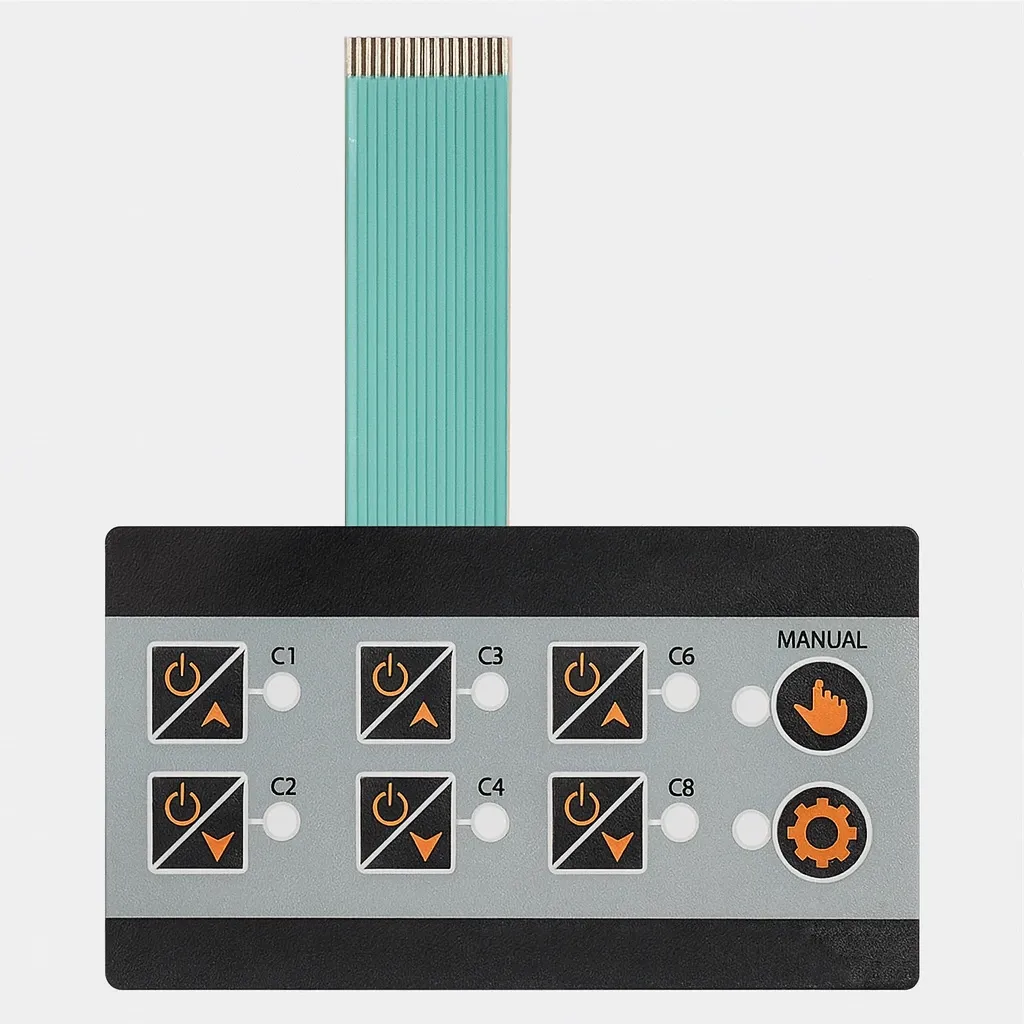

SMD chip LEDs are mounted onto the membrane circuit with conductive adhesive and positioned beneath clear windows in the overlay. Status information appears right next to each key without a separate indicator board.
With colour options such as red, green, yellow and blue, you can design on/off, alarm or mode indicators. The LEDs add very little to the total stack thickness.
Key features
Integrated indication
Status information without a separate LED board.
Colour options
Red, green, yellow, blue and white chip LEDs.
Slim construction
LEDs are embedded between the membrane layers.
Precise windows
Clear or diffused windows for even light.
Specifications
Values are typical. Final specifications are defined together based on your drawing and application.
Typical applications
- Medical monitors
- Power supplies
- Industrial control units
- Security panels
- Overlay material
- Polyester (PET) or polycarbonate (PC)
- Printing
- Second-surface screen printing, Pantone matched
- Illumination
- SMD chip LEDs, multiple colours
- Tactile element
- Polyester or metal dome
- Circuit
- Silver conductive ink on flexible PET
- Connection
- Flex tail with female/male pins or ZIF-ready end
- Sealing
- Front-surface sealing up to IP65
- Mounting
- 3M acrylic rear adhesive
